Gamma High Voltage Research
DC to DC High Voltage Regulated Power Supplies
FEATURES:
• Voltage & Current Programmable • Constant Voltage & Current • Voltage & Current Monitoring • External Interlock Capability • Arc & Short Circuit Protected
APPLICATIONS:
• X-Ray Systems • CRT Displays & Projection Systems • Photomultipliers • Capacitor Chargers • Lasers

MODEL GUIDE
MODEL
OUTPUT VOLTAGE
OUTPUT CURRENT

XR60-1

0 to 1.0KV

60mA

XR60-1.5

0 to 1.5KV

40mA

XR60-3

0 to 3KV

20mA

XR60-10

0 to 10KV

6mA

XR60-15

0 to 15KV

4mA

XR60-20

0 to 20KV

3mA

XR60-30

0 to 30KV

2mA

XR60-40

0 to 40KV

1.5mA

XR60-50

0 to 50KV

1.2mA

XR60-60

0 to 60KV

1mA

All units are available in Positive or Negative polarity.                                 Add P or N as suffix to Model number to indicate polarity desired.
XR small_B
DESCRIPTION:
The GAMMA "XR" series provides a compact, highly stabilized, variable high voltage power source of either positive or negative polarity, with ratings to 60KV and power levels to 60 watts, power by a 28V DC source, 24V DC input is available. The utilization of switch-mode MOSFET technology allows excellent efficiency increasing overall reliability. High voltage circuits are vacuum encapsulated in a silicone elastomer providing corona free, long term reliability. Dual control loops allow for independent control of both voltage and current where required. The excellent electrical characteristics of the "XR" series make it an ideal choice for the most demanding high voltage application.

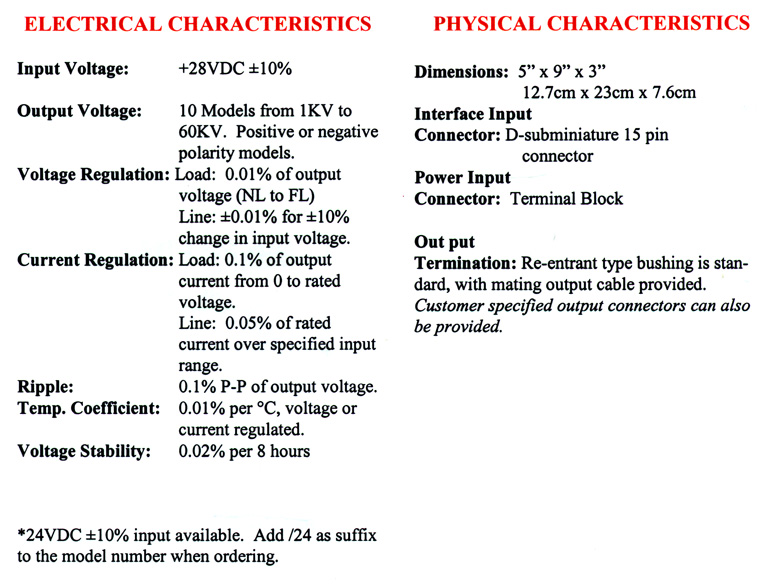

XR spec small
