Gamma High Voltage Research

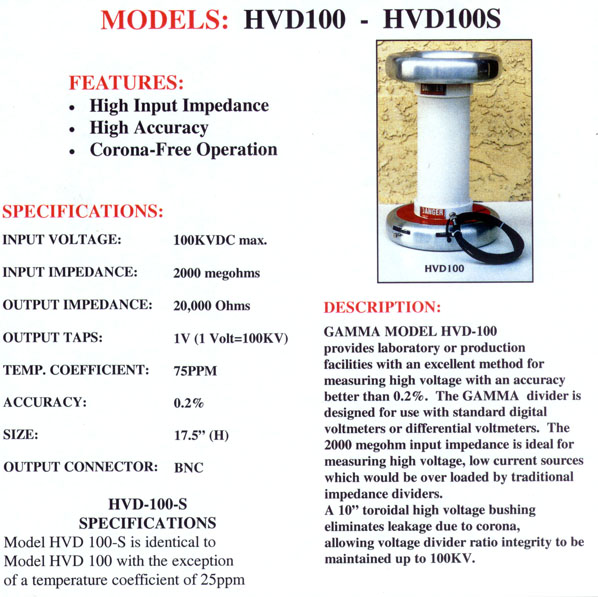

Dividers & Probes text

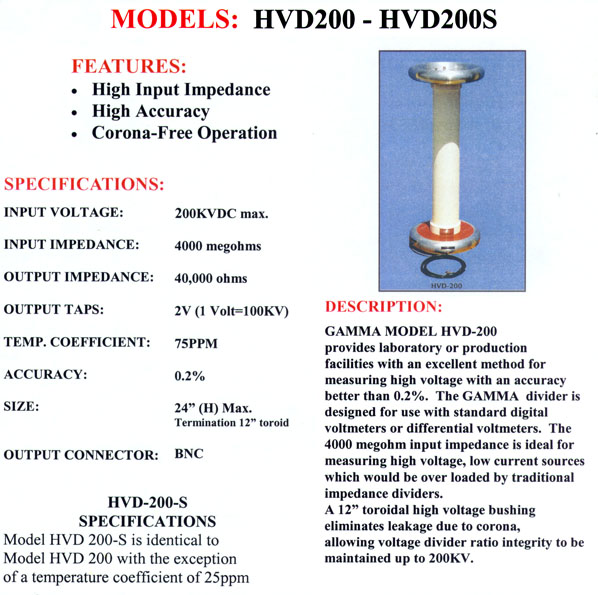

Dividers & Probes text2

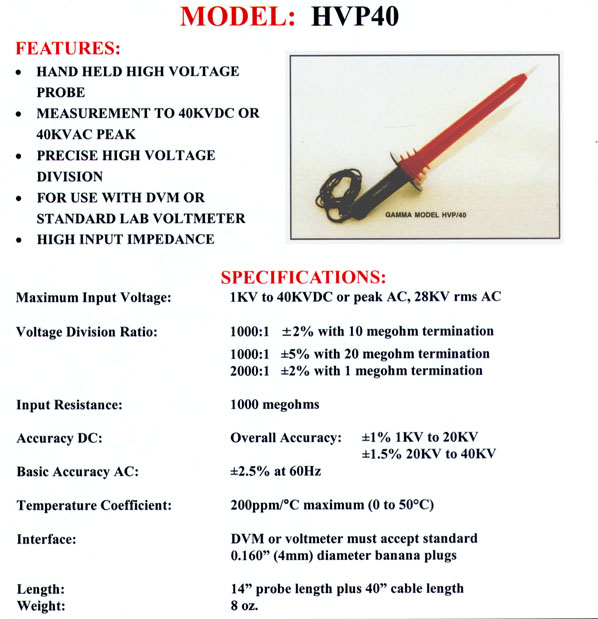

Dividers & Probes text3

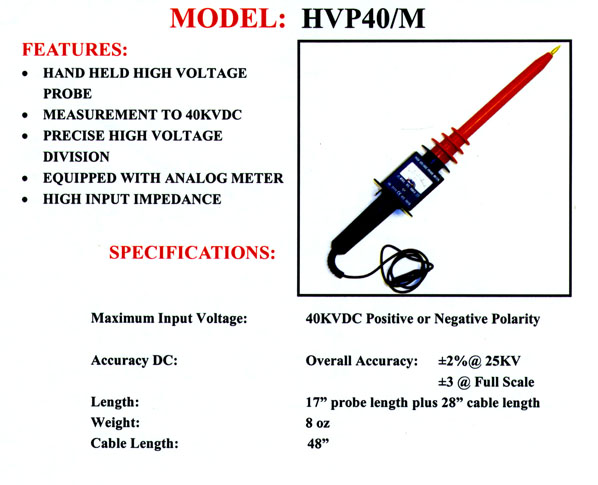

Dividers & Probes text4

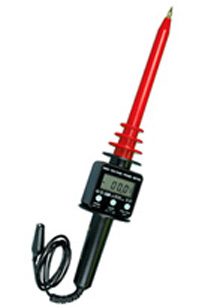

MODEL:   HVP40D

Input Impedance:

2000M Ω

Max. operation voltage:

40,000 Volts DC

Polarity:

Positive or Negative

Display:

3999 digit, LCD

Accuracy:

Full range ≤ 0.8%   2 digits

Temperature Coefficient:

≤ 100 PPM/C

Max. loading current:

≤ 20A at 40KV DC

Max. loading power:

≤ 0.8 watts

Voltage Range:

400VDC / 4KVDC / 40KVDC

Voltage resolution:

0.1V / 1V / 10V

Power source:

9V Battery (NEMA 1604)

Low battery Indicator:

≤ 7.3V Auto Indicator

Battery Life:

Approx 200hr (Alkaline)

Auto power off:

Approx 30 minutes

Peak Hold:

≥ 400ms

Sampling rate:

4 counts per second

Operating temperature:

zero C to +50 C

Storage temperature:

-20 C to +70 C

Ground lead length:

35” (90cm)

Dimensions:

80mm x 420mm

Weight:

360g

HVP40DHVP40D
